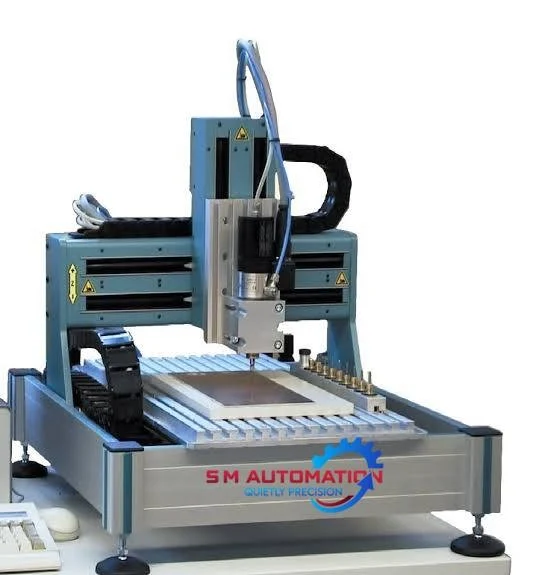

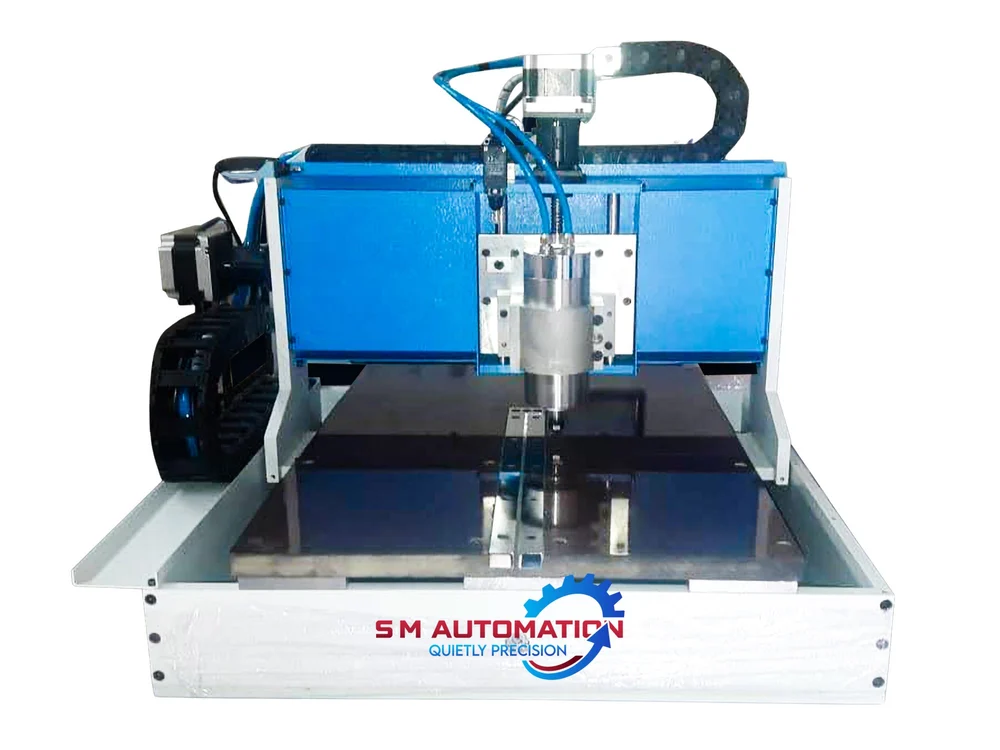

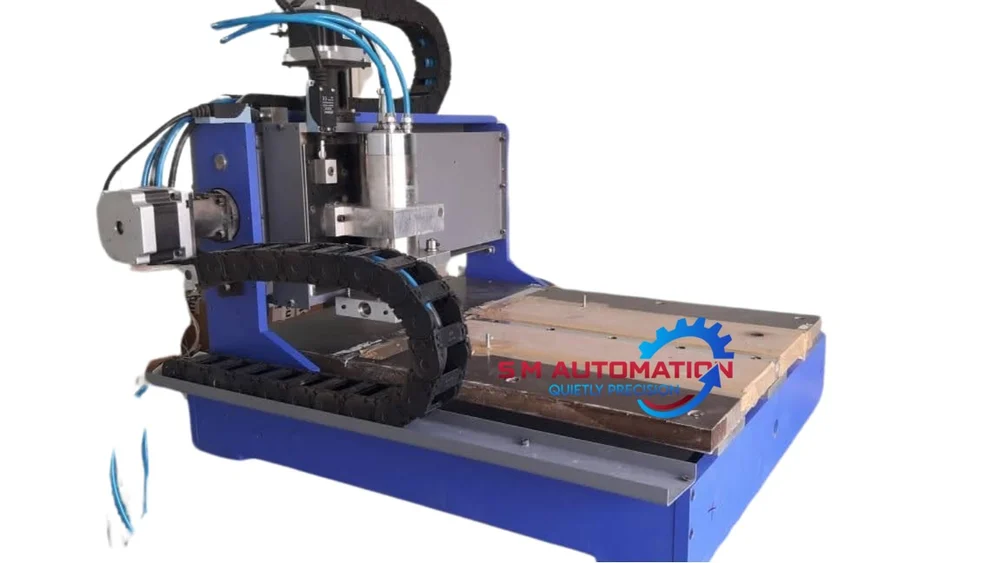

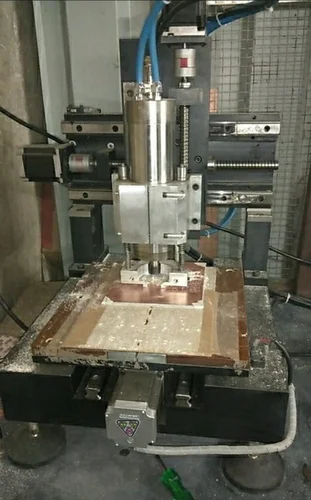

Table Top PCB Drilling Machine
CNC pcb Drilling- Routing sytem . Equipped with two 60K RPM spindles , this system delivers high quality drilling and high volume throughput. This is our manual tool changing variant int multiple spindle system catagory. This system gurantees throughput of 400000 drills per day. We are engaged in offering Table Top PCB Drilling Machine to our clients. All our products range has been widely appreciated by our clients.
Key Features
- Operation Mode: CNC
- Max Drill Size: 6.35 mm
- Table Size: 300x300 mm
- Spindle Count: 1 spindle
- Spindle Speed: 60000 RPM
- Automation Grade: Automatic
- Usage/Application: PCB DRILLING AND ROUTING
Specifications
| Price | ₹ 250000 / Piece |
| Operation Mode | CNC |
| Max Drill Size | 6.35 mm |
| Table Size | 300x300 mm |
| Spindle Count | 1 spindle |
| Spindle Speed | 60000 RPM |
| Automation Grade | Automatic |
| Usage/Application | PCB DRILLING AND ROUTING |
| Body Material | MS |
| Machine Capacity | 15 mm/min |
| Power Rating | 2 kW |
| Brand | s m automation |
| Country of Origin | Made in India |
| Frequency | 50 Hz |
| Voltage | 280 V |
| Product Details | |
| Minimum Order Quantity | 1 Piece |
| Fixturing Arrangement | Standard Dowel Pin Fixture |
| Hit Rate | 100-120 Hits Per Minute |
| Maximum Rapid Rate | 15 m/min |
| Mechanical Motion System | Linear Guide Ways With Precision Balls Crew |
| Positioning Precision | 15 microns |
| Working Area | 300 x 300 mm |
| Power Consumption | 1.2 kW |
| Tool Change | Manual |
| Electrical Motion System | Servo Motor |
Product Overview
CNC pcb Drilling- Routing sytem . Equipped with two 60K RPM spindles , this system delivers high quality drilling and high volume throughput. This is our manual tool changing variant int multiple spindle system catagory. This system gurantees throughput of 400000 drills per day. We are engaged in offering Table Top PCB Drilling Machine to our clients. All our products range has been widely appreciated by our clients.
