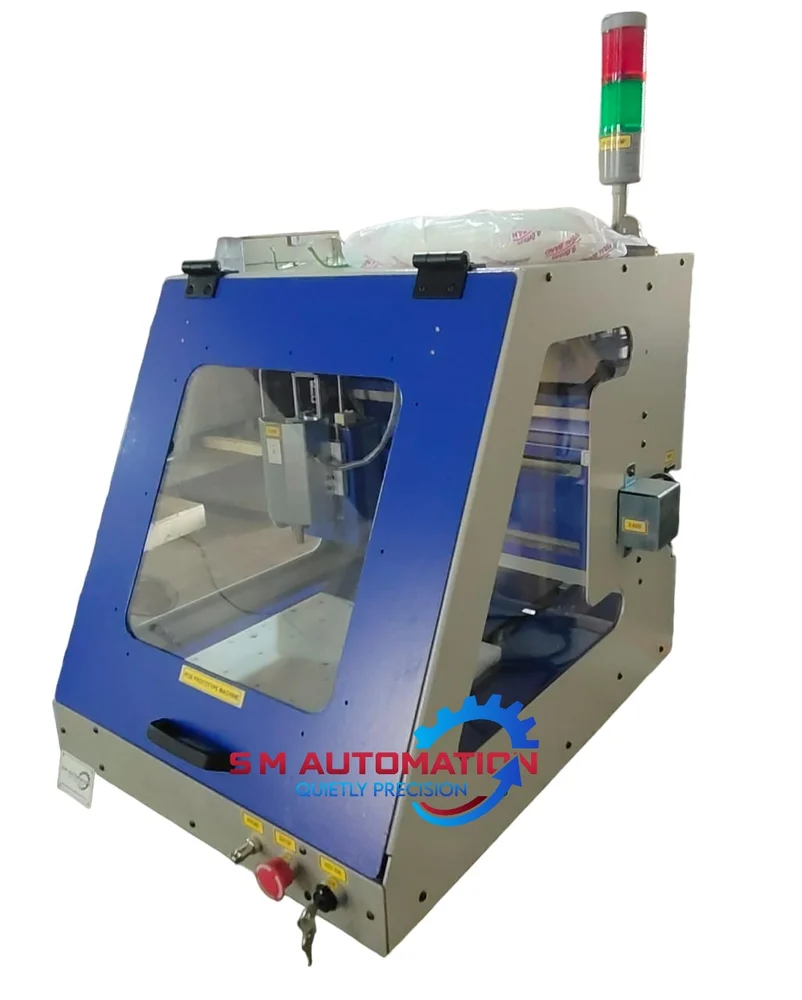

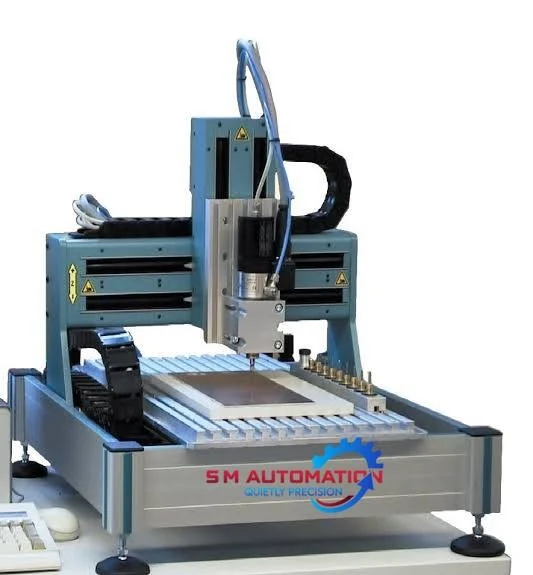

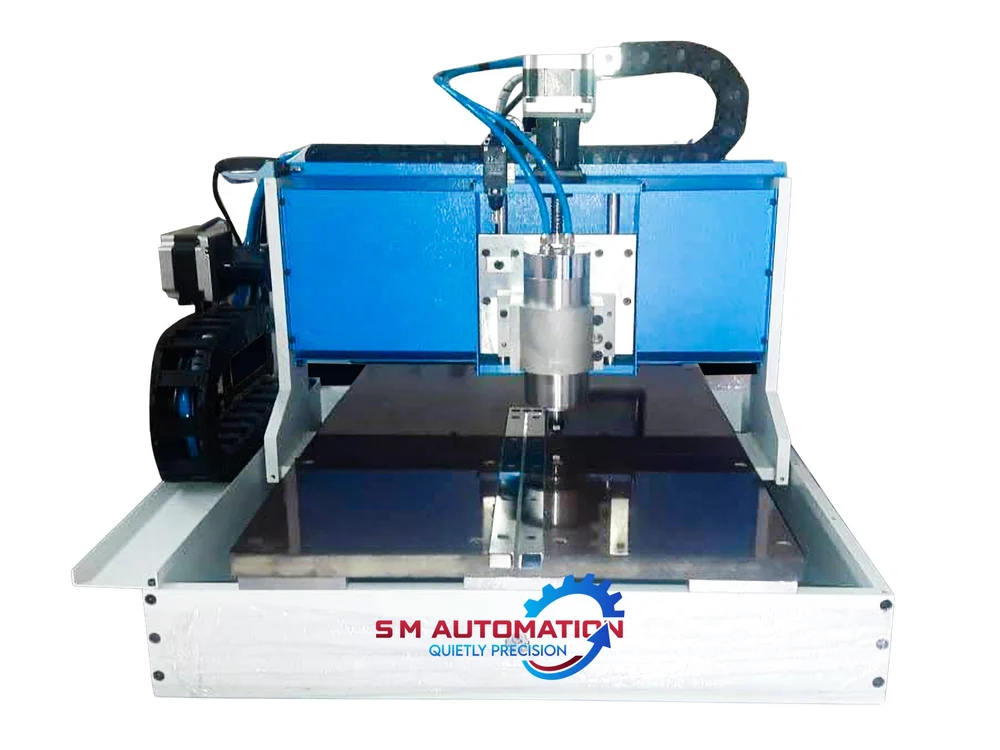

Pcb Prototyping Machine
CNC pcb Drilling- Routing sytem . Equipped with two 60K RPM spindles , this system delivers high quality drilling and high volume throughput. This is our manual tool changing variant int multiple spindle system catagory. This system gurantees throughput of 400000 drills per day.
Key Features
- Process Type: CNC Milling
- Max PCB Size: 300×300 mm
- Min Track Width: 0.15 mm
- Machine Material: Mild Steel
- Spindle Speed: 60000 RPM
- Axis Count: 3 Axis
- Production Capacity: 10 Machine
Specifications
| Price | ₹ 350000 / Piece |
| Process Type | CNC Milling |
| Max PCB Size | 300×300 mm |
| Min Track Width | 0.15 mm |
| Machine Material | Mild Steel |
| Spindle Speed | 60000 RPM |
| Axis Count | 3 Axis |
| Production Capacity | 10 Machine |
| Brand | s m automation |
| Country of Origin | Made in India |
| Automation Grade | Automatic |
| Tool Change | Manual |
| Minimum order quantity | 1 Piece |
| Product Details | |
| Minimum Order Quantity | 1 Piece |
| Usage/Application | PCB DRILLING AND ROUTING |
| Fixturing Arrangement | Standard Dowel Pin Fixture |
| Hit Rate | 100-120 Hits Per Minute |
| Maximum Rapid Rate | 15 m/min |
| Mechanical Motion System | Linear Guide Ways With Precision Balls Crew |
| Positioning Precision | 15 microns |
| Working Area | 300 x 300 mm |
| Power Consumption | 1.2 kW |
| Electrical Motion System | Servo Motor |
Product Overview
CNC pcb Drilling- Routing sytem . Equipped with two 60K RPM spindles , this system delivers high quality drilling and high volume throughput. This is our manual tool changing variant int multiple spindle system catagory. This system gurantees throughput of 400000 drills per day.
