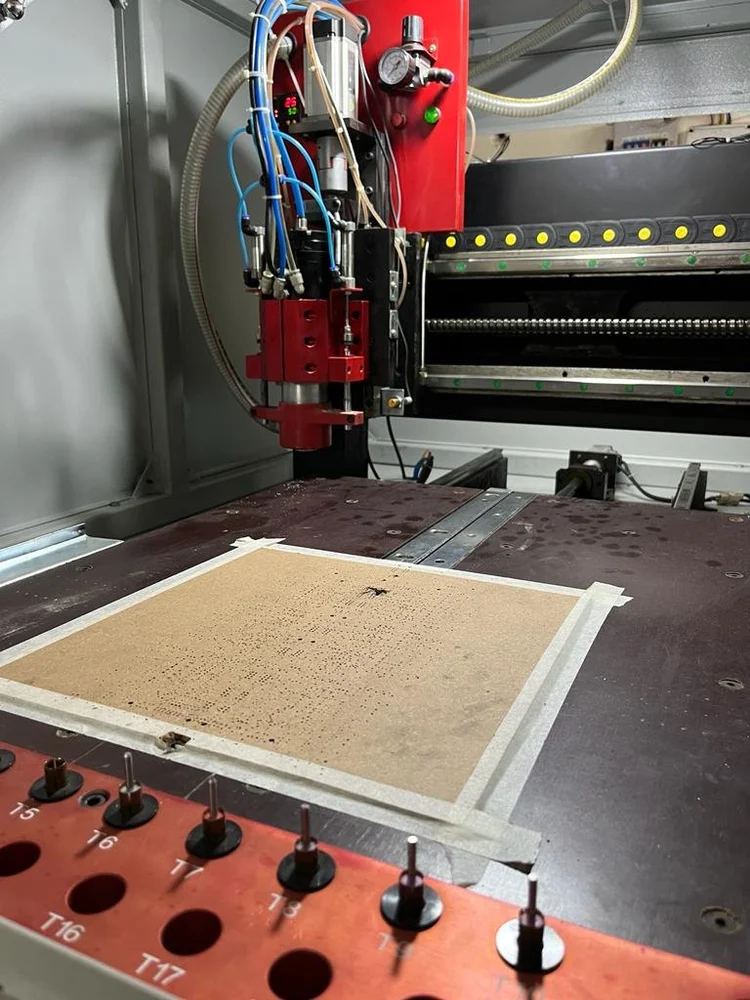

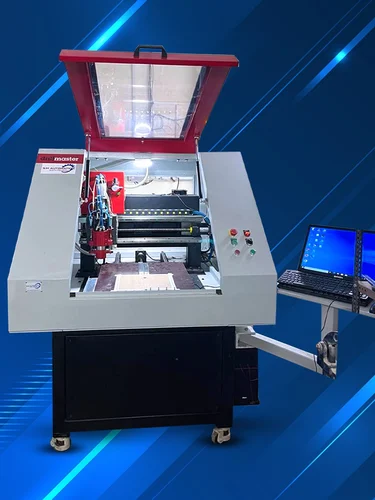

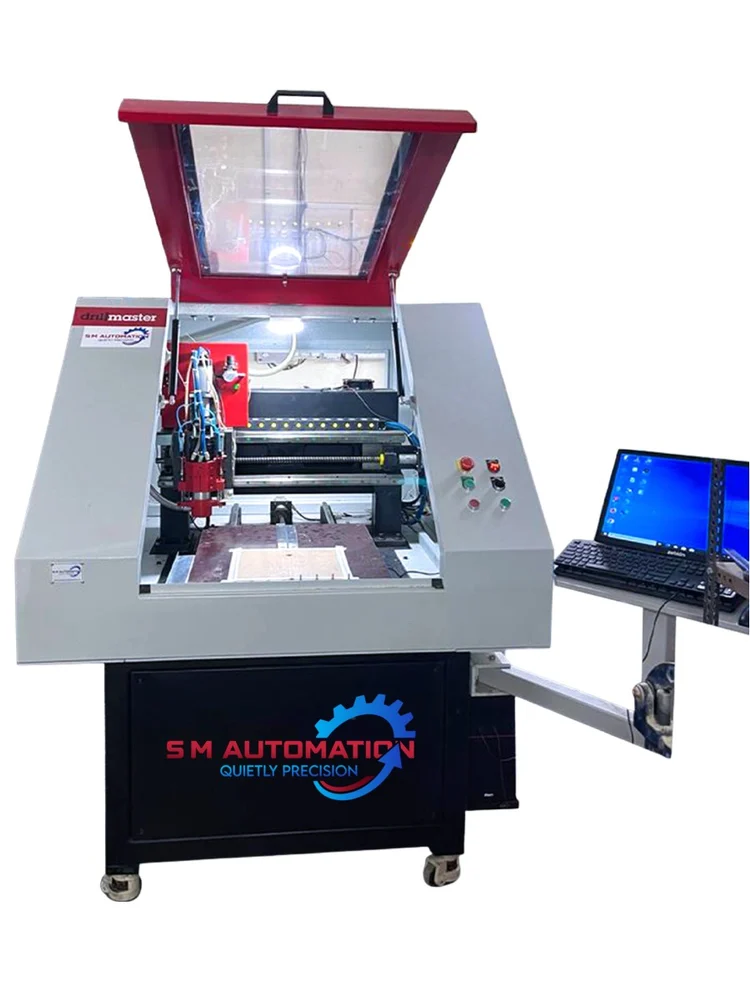

Automatic tool change PCB Drilling Machine

Automatic tool change PCB Drilling Machine

CNC pcb Drilling- Routing sytem . Equipped with two 60K RPM spindles , this system delivers high quality drilling and high volume throughput. This is our manual tool changing variant int multiple spindle system catagory. This system gurantees throughput of 400000 drills per day. We are engaged in offering PCB Drilling Machine to our clients. All our products range has been widely appreciated by our clients.

Key Features

  • Spindle Count: 1 spindle
  • Max Drill Size: 4 mm
  • Table Size: 500x400 mm
  • Tool Change System: Automatic Tool Change
  • Spindle Speed: 60000 RPM
  • Axis Count: 3 axis
  • Automation Grade: Automatic

Specifications

Price₹ 550000 / Piece
Spindle Count1 spindle
Max Drill Size4 mm
Table Size500x400 mm
Tool Change SystemAutomatic Tool Change
Spindle Speed60000 RPM
Axis Count3 axis
Automation GradeAutomatic
Drill Bit SizeSmall Drilling
Usage/ApplicationPCB DRILLING AND ROUTING
Machine Capacity8 mm/min
Body MaterialCasting
Power Rating3.5 kW
Brands m automation
Country of OriginMade in India
Frequency50 Hz
Voltage230V
Minimum order quantity1 Piece
Product Details
Minimum Order Quantity1 Piece
Fixturing ArrangementStandard Dowel Pin Fixture
Hit Rate100-120 Hits Per Minute
Maximum Rapid Rate15 m/min
Mechanical Motion SystemLinear Guide Ways With Precision Balls Crew
Positioning Precision15 microns
Working Area300 x 300 mm
Power Consumption1.2 kW
Tool ChangeManual
Electrical Motion SystemServo Motor
Get Quote Call Now

Product Overview

CNC pcb Drilling- Routing sytem . Equipped with two 60K RPM spindles , this system delivers high quality drilling and high volume throughput. This is our manual tool changing variant int multiple spindle system catagory. This system gurantees throughput of 400000 drills per day. We are engaged in offering PCB Drilling Machine to our clients. All our products range has been widely appreciated by our clients.
