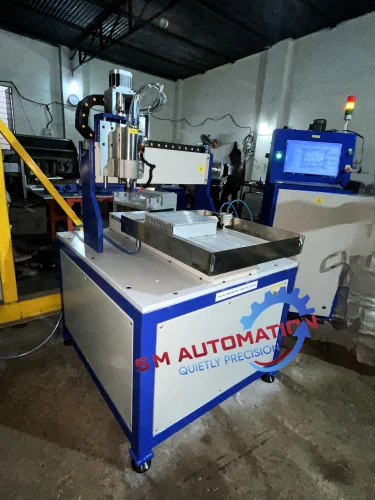

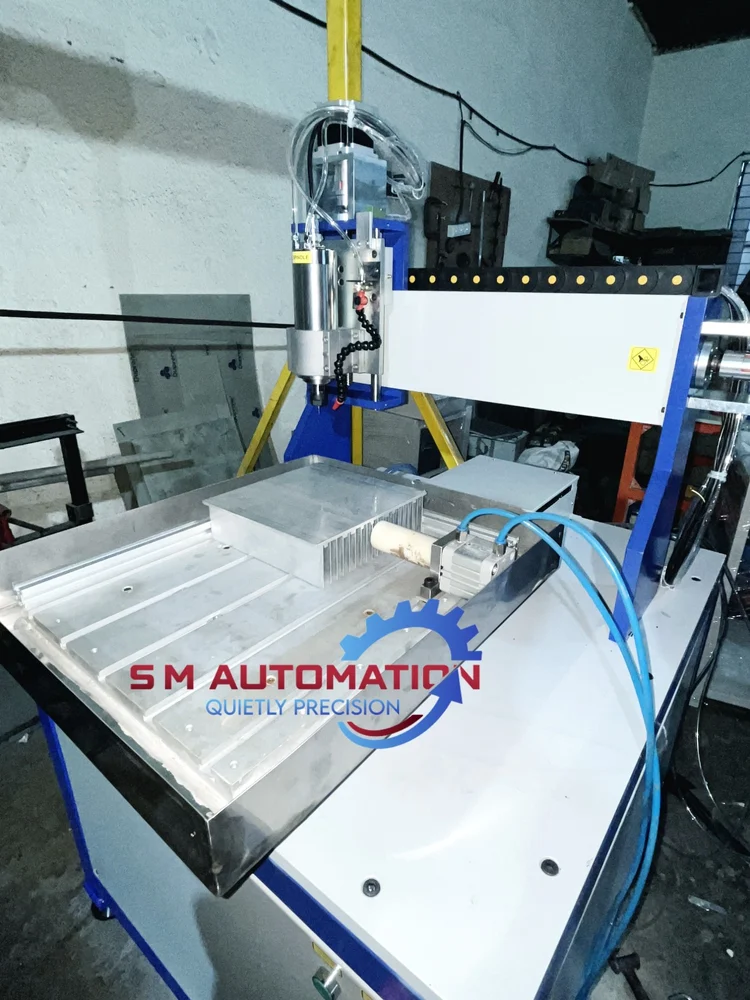

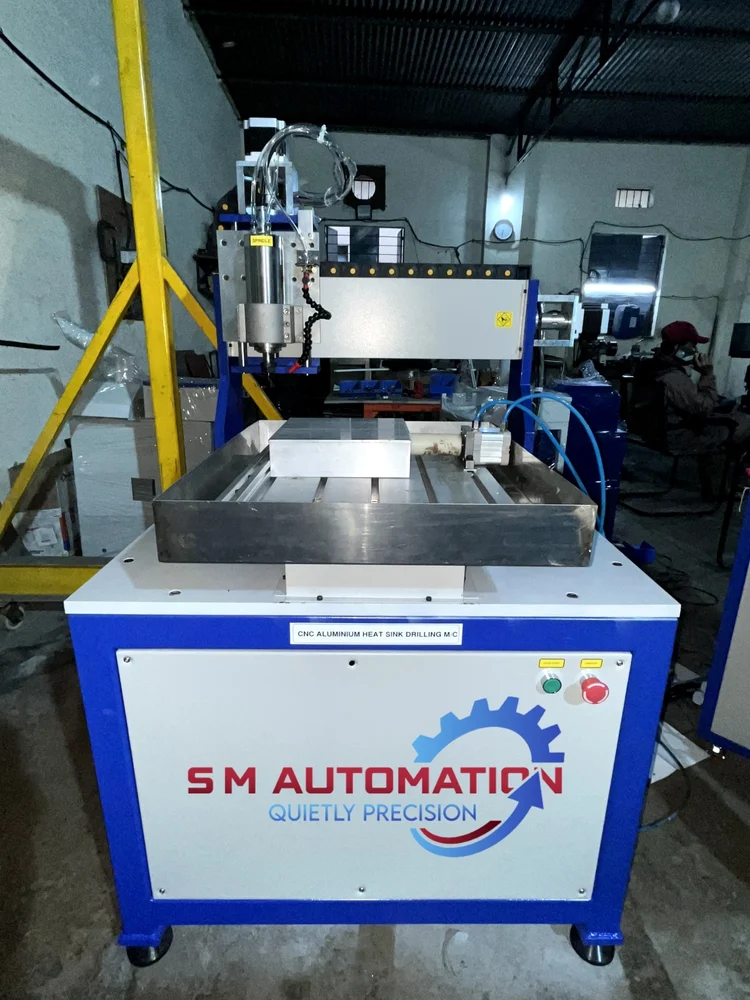

Aluminium Drilling Machine
Our industrial-grade Aluminium Drilling Machine is engineered for fast, precise, and chip-free hole making in aluminium profiles, extrusions, and sheets, ideal for fabrication and manufacturing sectors.
Key Features
- Machine Type: Automatic / Semi-Automatic
- Max Drill Diameter: Up to 16 mm
- Spindle Speed: High-speed up to 12000 RPM
- Motor Power: 2 HP / 3 HP Continuous Duty
- Clamping System: Pneumatic Workpiece Clamping
- Cooling: Integrated Micro-Drop Mist Cooling System
Specifications
| Price | Get Latest Price |
| Brand | S.M.AUTOMATION |
| Machine Type | Automatic / Semi-Automatic |
| Material Capability | Aluminium Profiles, Sheets, Extrusions |
| Max Drill Diameter | Up to 16 mm |
| Spindle Power | 2.2 kW / 3 kW |
| Spindle Speed | 3000 - 12000 RPM (Variable) |
| Table Size | Customize / 600x400 mm standard |
| Feed System | Pneumatic / Servo Driven |
| Clamping | Pneumatic Top & Side Clamps |
| Coolant System | Mist Spray Cooling System |
| Usage/Application | Aluminium Fabrication, Industrial Manufacturing |
| Machine Weight | Approx. 300 kg |
| Minimum Order Quantity | 01 Piece |
Product Overview
The Aluminium Drilling Machine by S.M. AUTOMATION is built for high-performance metal fabrication. Designed specifically to handle the unique requirements of soft but sticky metals like aluminium, it features high spindle speeds and a dedicated mist cooling system to prevent chip welding and ensure clean, burr-free holes. Equipped with robust pneumatic clamping to hold extrusions securely in place, this machine offers the rigidity, accuracy, and speed required for modern, high-volume production floors.
