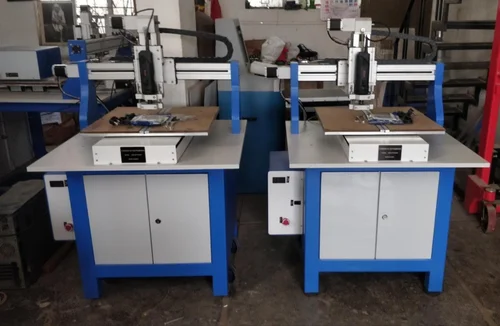

Double Spindle PCB Drilling Machine
CNC pcb Drilling- Routing sytem . Equipped with two 60K RPM spindles , this system delivers high quality drilling and high volume throughput. This is our manual tool changing variant int multiple spindle system catagory. This system gurantees throughput of 400000 drills per day.
Key Features
- Operation Mode: CNC
- Spindle Speed: 60000 RPM
- Max Drill Size: 3.2 mm
- Tool Change System: Automatic Tool Change
- Table Size: 400x400 mm
- Spindle Count: 1 spindle
- Automation Grade: Automatic
Specifications
| Price | ₹ 350000 / Piece |
| Operation Mode | CNC |
| Spindle Speed | 60000 RPM |
| Max Drill Size | 3.2 mm |
| Tool Change System | Automatic Tool Change |
| Table Size | 400x400 mm |
| Spindle Count | 1 spindle |
| Automation Grade | Automatic |
| Drill Bit Size | Micro Drilling |
| Usage/Application | PCB DRILLING AND ROUTING |
| Machine Capacity | 25 mm/min |
| Body Material | MS |
| Power Rating | 5 kW |
| Country of Origin | Made in India |
| Number of Spindle | Double |
| Voltage | 480 V |
| Frequency | 50 Hz |
| Product Details | |
| Minimum Order Quantity | 1 Piece |
| Brand | s m automation |
| Fixturing Arrangement | Standard Dowel Pin Fixture |
| Hit Rate | 100-120 Hits Per Minute |
| Maximum Rapid Rate | 15 m/min |
| Mechanical Motion System | Linear Guide Ways With Precision Balls Crew |
| Positioning Precision | 15 microns |
| Working Area | 300 x 300 mm |
| Power Consumption | 1.2 kW |
| Tool Change | Manual |
| Electrical Motion System | Servo Motor |
| Standard Accessories |
Product Overview
CNC pcb Drilling- Routing sytem . Equipped with two 60K RPM spindles , this system delivers high quality drilling and high volume throughput. This is our manual tool changing variant int multiple spindle system catagory. This system gurantees throughput of 400000 drills per day.
